EMB-8MP-2201

Price range: $400 through $500

  • NXP i.MX8M PLUS 4 x Cortex-A53 @1.8GHz
  • 4GB LPDDR4, 16GB eMMC
  • AI/ML Neural Processing Unit up to 2.3 TOPS
  • HDMI, 3 x USB 3.1, 1 x USB 2.0 Host, 1 x USB 2.0 OTG and 2x GBEs LANs
  • Wi-Fi and 4G/5G Ready
  • 3 x RS232, 1 x RS422/485, 2 x CAN-FD, 6 x GPIOs



or
Add to Wishlist
SKU: EMB-8MP-2201 Category: Tag:

Share:

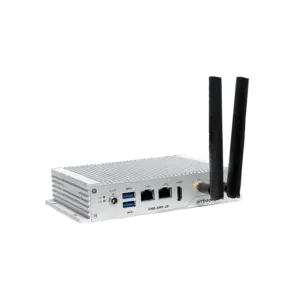

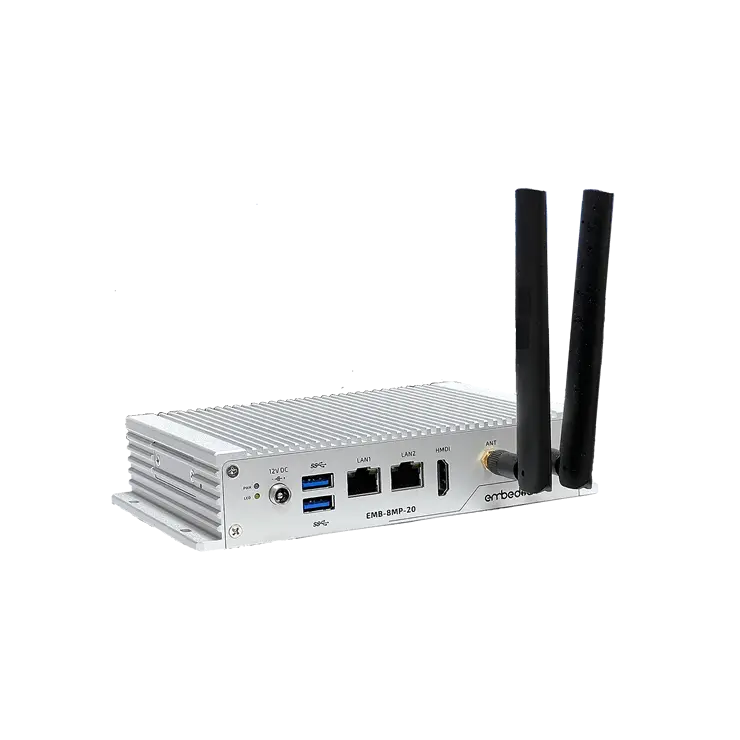

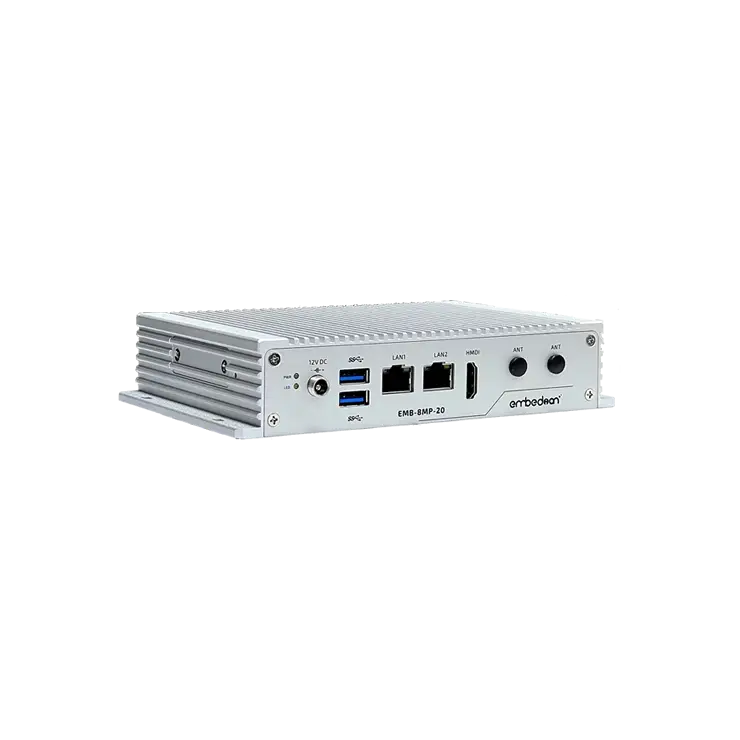

EMB-8MP-2201 NXP Box Computer

  • Quad/Dual-core ARM Cortex-A53, 1.8GHz
  • Real-time ARM Cortex-M7 co-processor, 800MHz
  • Integrated 2.3 TOPS AI/ML Neural Processing Unit
  • Dimensions: 109.78mm x 177.25mm x 36.35mm (L x W x H)
  • Availability guaranteed until 2038

Feature Highlights


4GB LPDDR4 and 16GB eMMC


GPU (OpenGL ES 3.0, Open CL 1.2, Vulkan)


VPU (Video Decode: 1080p60, h.265/4, VP9, VP8; Video Encode: 1080p60, h.265/4)


HDMI (4Kp30)


2 x GbE LANs (one w/TSN) RJ-45 connectors, 3 x USB 3.1, 1 x USB 2.0 Host Type-A, 1 x USB 2.0 OTG mini-B


WiFi and LTE Ready


TPM, microSD socket, nanoSIM socket, 3 x RS232s, 1 x RS422/485, 2 x CAN-FD, 6 x GPIOs


1 x I2S Audio box heade


1 x power indication LED and 1 x Programmable LED


1 x reset button


RTC and Watchdog


Wide temperature range of -40 degree C to 85 degree C

Yocto Project, Ubuntu, Debian, Android, Linux and RTOS


Full Board Support Package and ready-to-run images


Yocto Project, Ubuntu, Debian and Android BSP


Continuous BSP updates and maintenance

Advantages


High Stability & Reliability


Fanless, Low‑Power, Energy‑Efficient Design


Compact, Space‑Saving Form Factor


Long Lifecycle & Industrial Supply Stability


Strong Compatibility with Industrial OS & Software


Rugged, Industrial‑Grade Construction

hardware document Specifications

Specifications

Technical Information

Dimension (W x L x H)

177.25mm x 109.78mm x 36.35mm

CPU


NXP i.MX8M PLUS 4 x Cortex-A53 @1.8GHz


Real-time 800MHz ARM Cortex-M7

GPU


GC7000 Ultra Lite (3D) and GC520L (2D)


Supports OpenGL ES 3.1/3.0, Vulkan, Open CL 1.2 FP, OpenVG 1.1 and G2D


Supports upto 4Kp30 resolutions


GC7000 Ultra Lite (3D) and GC520L (2D)


Supports OpenGL ES 3.1/3.0, Vulkan, Open CL 1.2 FP, OpenVG 1.1 and G2D


Supports upto 4Kp30 resolutions

VPU


Video Decode: 1080p60, h.265/4, VP9, VP8


Video Encode: 1080p60, h.265/4

Main Memory


32-bit 4GB LPDDR4x up to 3200MT/s


16GB eMMC (5.x) onboard


AT24C32 EEPROM onboard

NPU


2.3 TOP/s Neural Network performance


Keyword detect, noise reduction, beamforming


Speech recognition (i.e. Deep Speech 2)


Image recognition (i.e. ResNet-50)

Display


HDMI 2.0a connector (up to 4Kp30)

TPM

Support TPM 2.0

Gigabit Ethernet


2 x RJ45 connector along the board edge


NXP i.MX8M Plus integrated RGMII


One (eqos) can support TSN, one (fec) can support ethercat


Speed: 10/100/1000 Mbps


PHY: Realtek RTL8211FD(I)-CG

USB


One USB OTG 2.0 Connector (Mini Type B)


Two USB 3.1 Host Ports (Type A)


One USB 3.1 and one USB 2.0 host Type-A on the rear side

WiFi and 4G LTE


Optional

SD interface


one 4-bit microSD connector

nanoSIM card socket


1 x Nano SIM Card Socket

LED


1 x green power indication LED


1 x yellow programmable LED

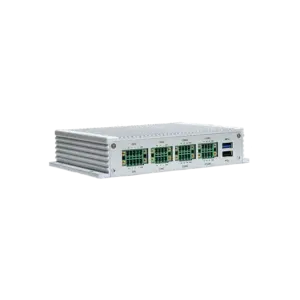

RS232 and RS422/485


2 x 2-wire and 1 x 4-wire RS232


1 x RS422/485


Use 3.5mm terminal blocks

CAN BUS


2 x CAN-FD with Transceivers


Use 3.5mm terminal blocks

RTC


RTC Backup Battery

Reset


1 Reset Button

Watchdog


Watchdog TimerRTC Backup Battery

General Purpose I/O

6 x GPIOs (open-drain)

Boot Source Select

Select options include to boot from one of the following:


eMMC Flash (Default)


microSD Card (Recovery)

Power Supply

12V input


Power Supply Voltage: 12V DC-IN by lockable DC Jack (or 2-pin type connector by BOM option)


AT mode


Power Consumption: 7.21 W

Temperature

Industrial Temperature Range

-40 degree C ~ 85 degree C

Commercial Temperature Range

0 degree C ~ 60 degree C

Storage Temperature Range

-40 degree C ~ 150 degree C

Junction Temperature Range

-40 degree C ~ 150 degree C

Mechanical

Mechanical


177.25mm x 109.78mm x 36.35mm


Weight: 1.5kg


Wall Mount

Certifications

CE/FCC class B

hardware document Design Resources



hardware document Software Guides

Yocto

Developer's Guide

Comprehensive Yocto developer guide for building, customizing embedded Linux systems

Debian

Developer's Guide

Comprehensive Debian developer guide for building, customizing embedded Linux systems

Ubuntu

Developer's Guide

Comprehensive Ubuntu developer guide for building, customizing embedded Linux systems

Real-Time Edge

Developer's Guide

Real-Time Edge Software enables deterministic Linux, industrial networking, low latency applications.

Android

Developer's Guide

Comprehensive Android developer guide for building, customizing embedded Linux systems

hardware document Ordering Information

Part Number

Notes

1. I: Industrial Temperature (-40 degree C ~ 85 degree C); Leave it blank if commercial temperature.

2. W: with WiFi (2.4GHz and 5GHz, 802.11ax) and Bluetooth 5.2; Leave it blank if not needed.

3. G: with 4G/LTE; Leave it Blank if you do not need it

Examples


Part Number: EMB-8MP-2201-I

Description: i.MX8M Plus box computer with Industrial Temperature (-40 degree C ~ 85 degree C)


Part Number: EMB-8MP-2201-W

Description: i.MX8M Plus box computer with WiFi/BT and commercial temperature. (0 degree C ~ 60 degree C)

Packing List


1 x EMB-8MP-2201
