EMB-MP255-2201

Price range: $300 through $370

  • ST STM32MP255C 2 x Cortex-A35 @1.2GHz
  • 2GB LPDDR4, 16GB eMMC
  • AI/ML Neural Processing Unit up to 1.35 TOPS
  • HDMI, 1x USB 3.0 host Type-A, 1 x USB 2.0 OTG mini type-B, 2 x USB 2.0 Host type-A and 2x GBEs RJ45 LANs
  • Wi-Fi Ready
  • 3 x RS232, 1 x RS422/485, 2 x CAN, 6 x GPIOs



or
Add to Wishlist
SKU: EMB-MX255-2201 Category: Tag:

Share:

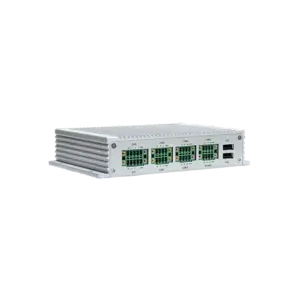

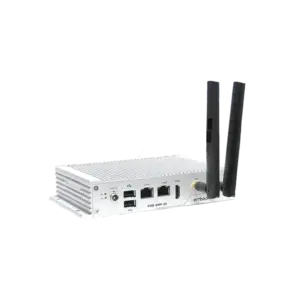

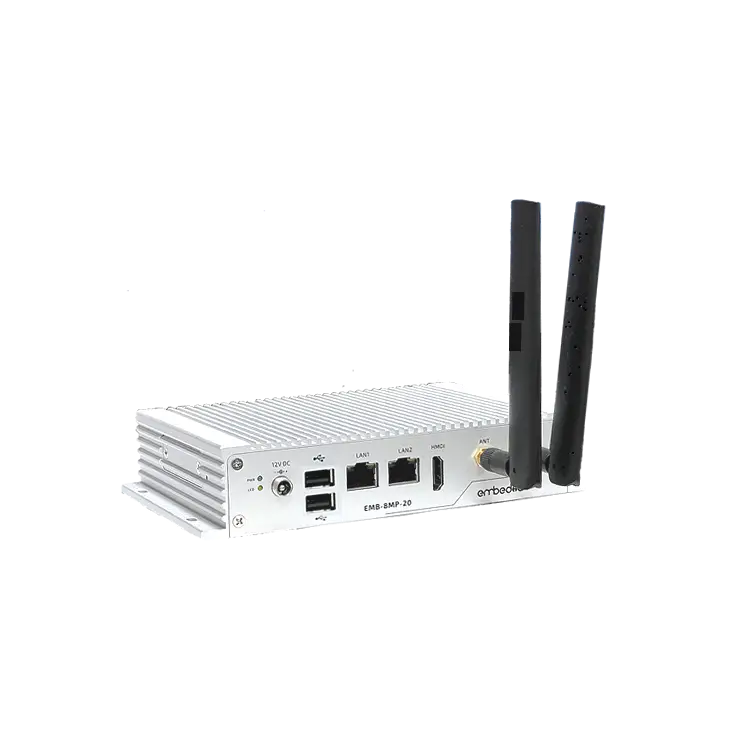

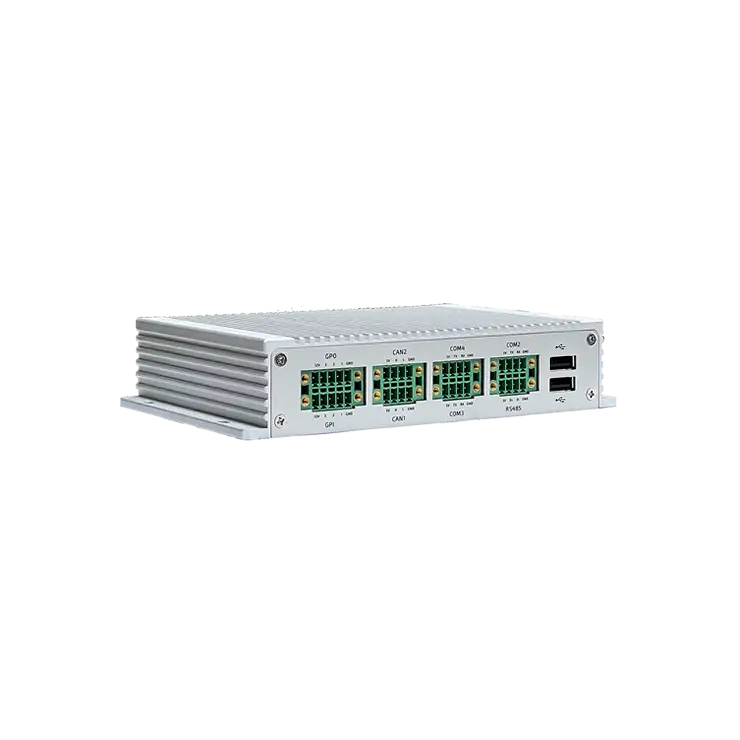

EMB-MP255-2201 ST Box Computer

  • Dual-core ARM Cortex-A35, 1.2GHz
  • Real-time ARM Cortex-M33 co-processor, 400MHz
  • Integrated 1.35 TOPS AI/ML VeriSilicon NPU
  • 3D GPU (VeriSilicon) up to 800MHz
  • Dimensions: 109.78mm x 177.25mm x 36.35mm (L x W x H)
  • Availability guaranteed until 2038

Feature Highlights


2GB LPDDR4 and 16GB eMMC


Integrated 1.35 TOPS AI/ML VeriSilicon NPU


3D GPU (VeriSilicon) up to 800MHz


HDMI (1920x1080p60)


2 x GbE LANs RJ-45 connectors, 1 x USB 3.0 host Type-A, 2 x USB 2.0 Host Type-A, 1 x USB 2.0 OTG mini-B


microSD socket, 3 x RS232s, 1 x RS422/485, 2 x CAN-FD, 6 x GPIOs


1 x power indication LED and 1 x Programmable LED


1 x reset button


RTC and Watchdog


Wide temperature range of -40 degree C to 85 degree C

Yocto Project, Linux and RTOS


Full Board Support Package and ready-to-run images


Yocto Project BSP


Continuous BSP updates and maintenance

Advantages


High Stability & Reliability


Fanless, Low‑Power, Energy‑Efficient Design


Compact, Space‑Saving Form Factor


Long Lifecycle & Industrial Supply Stability


Strong Compatibility with Industrial OS & Software


Rugged, Industrial‑Grade Construction

hardware document Specifications

Specifications

Technical Information

Dimension (W x L x H)

177.25mm x 109.78mm x 36.35mm

CPU


ST STM32MP255C 2 x 1.2GHz Cortex-A35 Core


Real-time 400Mhz ARM Cortex-M33


VeriSilicon NPU (ML) 1.35 TOPs

GPU


VeriSilicon 3D graphics accelerator


Support OpenGL ES 3.x, Vulkan 1.2 / 1.3, OpenCL 3.0 and OpenVX 1.3

Main Memory


16-bit 2GB LPDDR4x up to 3200MT/s


16GB eMMC (5.x) onboard


AT24C32 EEPROM onboard

Display


HDMI 2.0a connector (up to 1920x1080p60)

Gigabit Ethernet


2 x RJ45 connector along the board edge


ST STM32MP255 integrated RGMII


Speed: 10/100/1000 Mbps


PHY: Realtek RTL8211FD(I)-CG

USB


One USB OTG 2.0 Connector (Mini Type B)


Two USB 2.0 Host Ports (Type A) on the front edge


One USB 3.0 host Type-A on the rear side

SD interface


one 4-bit microSD connector

LED


1 x green power indication LED


1 x yellow programmable LED

RS232 and RS422/485


2 x 2-wire and 1 x 4-wire RS232


1 x RS422/485


Use 3.5mm terminal blocks

CAN BUS


2 x CAN-FD with Transceivers


Use 3.5mm terminal blocks

RTC


RTC Backup Battery

Reset


1 Reset Button

General Purpose I/O

6 x GPIOs (open-drain)

Boot Source Select

Select options include to boot from one of the following:


eMMC Flash (Default)


microSD Card (Recovery)

Power Supply

12V input


Power Supply Voltage: 12V DC-IN by lockable DC Jack (or 2-pin type connector by BOM option)


AT or ATX mode


Power Consumption: 3.5 W

Temperature

Industrial Temperature Range

-40 degree C ~ 85 degree C

Commercial Temperature Range

0 degree C ~ 60 degree C

Storage Temperature Range

-40 degree C ~ 150 degree C

Junction Temperature Range

-40 degree C ~ 150 degree C

Mechanical

Mechanical


177.25mm x 109.78mm x 36.35mm


Weight: 1.5kg


Wall Mount

Certifications

CE/FCC class B



hardware document Software Guides

Yocto

Developer's Guide

Comprehensive Yocto developer guide for building, customizing embedded Linux systems

hardware document Ordering Information

Part Number

Notes

1. I: Industrial Temperature (-40 degree C ~ 85 degree C); Leave it blank if commercial temperature.

Examples


Part Number: EMB-MP255-2201-I

Description: ST STM32MP255C box computer with Industrial Temperature (-40 degree C ~ 85 degree C)

Packing List


1 x EMB-MP255-2201
