OSM-RZV2H-LF
Price range: $300 through $400
- High throughput AI inference at the edge (up to ~80 TOPS) that can handle complex vision models (e.g., image classification, detection) locally
- Renesas RZ/V2H 4 x Cortex-A55 @1.8GHz, 2 x Cortex-R8 @800MHz and 1 x Cortex-M33 @200MHz
- DRP-AI AI accelerator supports vision AI up to 80 TOPS (sparse, skip zero weights)
- Power efficiency of ~10 TOPS/W (Low-power, fanless operation)
- 3D GPU (Mali-G31) supports OpenGL ES 3.2/3.1/3.0/2.0, Vulkan 1.2 and OpenCL 2.0 (Full Profile)
- H.264(1920×1080@ 60fps)/H.265(3840×2160 @30fps) encode and decode
- 16GB/8GB LPDDR4x, 128GB eMMC
- 1 x 4-LANE MIPI-DSI up to 1920×1080 @ 60 Hz, 2x GBEs and 4 x 4-LANE MIPI-CSI
- 2 x USB 3.2, 1 x 4-lane PCIe 3.0, 1 x USB 2.0 OTG and 1x USB2.0 host, 32x extra GPIOs
- 2 x CAN-FD, 1 x SDIOs, 4 x UARTs, 6 x I2C, 2 x I2S, 1 x QSPI, 2 x SPI, 6 x PWMs, 2x ADCs
Share:

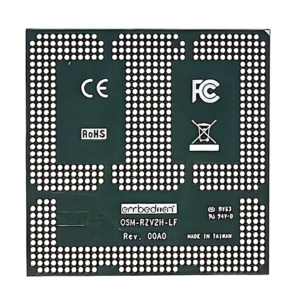

OSM-RZV2H-LF Renesas OSM 1.2 size-L System-on-Module
- Renesas RZ/V2H 4 x Cortex-A55 @1.8GHz, 2 x Cortex-R8 @800MHz and 1 x Cortex-M33 @200MHz
- DRP-AI3 Accelerator up to 80 TOPS (sparse) enabling high throughput for vision AI tasks at the edge
- 3D GPU (Mali-G31) supports OpenGL ES 3.2/3.1/3.0/2.0, Vulkan 1.2 and OpenCL 2.0 (Full Profile)
- H.264(1920×1080@ 60fps)/H.265(3840×2160 @30fps) encode and decode
- OSM 1.2 Size-L (45mm x 45mm) Compliance
- Availability guaranteed until 2038
Feature Highlights | |
| |
Yocto Project, Ubuntu, Linux and RTOS | |
| |
Speed Up your Product Design | |
Specifications
Specifications | ||
Technical Information | ||
Compliance | OSM 1.2 Size-L Compliant | |
Dimension (W x L) | 45mm x 45mm | |
CPU | ||
GPU | ||
AI accelerator (DRP-AI) | ||
Image Signal Processor Unit (ISP) | ||
Video Codec Unit | – H.264/AVC (High Profile, level 4.2; Main Profile, level 4.2; Baseline Profile, level 4.2) – H.265/HEVC (Main Profile, level 5) – H.264/AVC (High Profile, level 4.2; Main Profile, level 4.2; Baseline Profile, level 4.2) – H.265/HEVC (Main Profile, level 5) – (H.264) 1920 × 1080 × 60 fps – (H.265) 3840 × 2160p × 30 fps | |
Main Memory | ||
Display | ||
Camera Interface | ||
SDIO | One SDIO interface | |
SPI | ||
I2S | Two I2S interfaces | |
I2C | Six I2C interfaces | |
UART | ||
FlexCAN Bus | Two CAN-FD interfaces | |
USB | ||
PCIe | – 1, 2, or 4 lanes × 1 channel – 1 or 2 lanes × 2 channels | |
Gigabit Ethernet | ||
Real-Time Clock (RTC) | External Micro Crystal RV-8263-C8 RTC controller on module | |
General Purpose I/O | 24 x GPIO Signals | |
PWM | ||
ADC | ||
Power Consumption (Typical) | 1.8 W | |
Boot Source Select | Select options include to boot from one of the following: | |
Power Supply | ||
Fixed 5V | ||
Temperature | ||
Industrial Temperature Range | -40 degree C ~ 85 degree C | |
Commercial Temperature Range | 0 degree C ~ 60 degree C | |
Storage Temperature Range | -40 degree C ~ 150 degree C | |
Junction Temperature Range | -40 degree C ~ 150 degree C | |
Form Factor | ||
OSM 1.2 Size-L | 45 mm x 45 mm by OSM 1.1 Size-L Specification | |
Design Resources
[Download not found]
[Download not found]
Software Guides
Yocto Comprehensive Yocto developer guide for building, customizing embedded Linux systems
 | Ubuntu Comprehensive Ubuntu developer guide for building, customizing embedded Linux systems
 |
OSM-RZV2H-LF Renesas OSM 1.2 Evaluation Kit
- OSM-RZV2H-LF module bring-up platform for hardware and software development
- OSM-RZV2H-LF module evaluation and validation platform
- Customer carrier board design reference
- Priority technical support from Embedian
- Can serve as a single board computer (SBC) product.
Ordering Info. | |
Packing Lists | |
|
| |
Evaluation Bseboard Features | |
| |
Ordering Information
Notes |
1 |
2. I: Industrial Temperature (-40 degree C ~ 85 degree C); Leave it blank if commercial temperature. |
Examples |
Description: Renesas RZ/V2H OSM size-L 1.2 module with 16GB LPDDR4x, Industrial Temperature (-40 degree C ~ 85 degree C) |
Description: Renesas RZ/V2H OSM 1.2 size-L module with 8GB LPDDR4x and commercial temperature.) |
