pITX-MX8M-PLUS

Price range: $220 through $300

  • NXP i.MX8M PLUS 4 x Cortex-A53 @1.8GHz
  • 2GB/4GB/6GB LPDDR4, 16GB eMMC
  • AI/ML Neural Processing Unit
  • HDMI, LVDS, MIPI-DSI, 2 x USB 3.0, 1 x USB 2.0 OTG, 2x GBEs LANs, M.2 and mPCIe
  • 2.0mm 50P expansion header (1 x USB 3.1 Host, 3 x USB 2.0 Host, 2 x CAN-FD, 1 x SPI, 2 x I2C, 4 x UARTs and 6 x GPIOs)



or
Add to Wishlist
SKU: pITX-MX8M-PLUS Category: Tag:

Share:

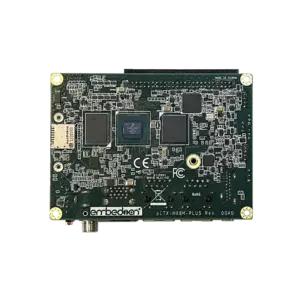

pITX-MX8M-PLUS NXP pico-ITX SBC

  • Quad/Dual-core ARM Cortex-A53, 1.8GHz
  • Integrated 2.3 TOPS AI/ML Neural Processing Unit
  • Real-time ARM Cortex-M7 co-processor, 800MHz
  • pico-ITX (100mm x 72mm) Form Factor and passive cooling solution
  • Availability guaranteed until 2038

Feature Highlights


2GB or 4GB LPDDR4 and 16GB eMMC


GPU (OpenGL ES 3.0, Open CL 1.2, Vulkan)


VPU (Video Decode: 1080p60, h.265/4, VP9, VP8; Video Encode: 1080p60, h.265/4)


HDMI (4Kp30) connector and 2 x MIPI-CSI (2-LANE and 4-LANE)


24-bit dual-channel LVDS (1080p) or MIPI-DSI (1920x1440p60) connector


1 x 2-LANE and 1 x 4-LANE MIPI-CSI FPC connector


1 x M.2 (SDIO/UART/USB 2.0/I2C/PCIe/I2S) Key E connector for WiFi


1 x mPCIE connector (for 4G/5G LTE, USB 3.1 and 2.0 only)


2 x GbE (one w/ TSN) RJ-45 connector


2 x USB 3.0 Type A, 1 x mini USB client connector


1 x I2S Audio box heade


1 x 50-pin expansion Header (4 x UARTs, 1 x USB 3.1, 2 x USB 2.0, 2 x I2C, 1 x SPI, 6 GPIOs, 2 x CAN-FD)


1 x power indication LED and 1 x Programmable LED


1 x reset button


1 x RTC battery connector


Wide temperature range of -40 degree C to 85 degree C

Yocto Project, Ubuntu, Debian, Android, Linux and RTOS


Full Board Support Package and ready-to-run images


Yocto Project, Ubuntu, Debian and Android BSP


Continuous BSP updates and maintenance

Speed Up your Product Design


Full design package - BSP and 3D step files


Direct technical support by Embedian design engineers


Free design review by Embedian engineers


Carrier board debug by Embedian design engineers


Driver adaptation service for custom LCD panels

hardware document Specifications

Specifications

Technical Information

Form Factor

pico-ITX

Dimension (W x L x H)


100mm x 72mm x 19mm

CPU


NXP i.MX8M PLUS 4 x Cortex-A53 @1.8GHz


Real-time 800MHz ARM Cortex-M7

Main Memory


32-bit 2GB/4GB LPDDR4x up to 3200MT/s


16GB eMMC (5.x) onboard


AT24C32 EEPROM onboard

NPU


2.3 TOP/s Neural Network performance


Keyword detect, noise reduction, beamforming


Speech recognition (i.e. Deep Speech 2)


Image recognition (i.e. ResNet-50)

Display


HDMI 2.0a connector (up to 4Kp30)


Dual Channel LVDS connector (up to 1920x1200@60Hz), Backlight Power 5V or 12V, Max. 1.5A


MIPI DSI (up to 1920x1440p60) shared with second channel LVDS interface

TPM

Support TPM 2.0

Gigabit Ethernet


2 x RJ45 connector along the board edge


NXP i.MX8M Plus integrated RGMII (one supports QoS with TSN and one can support Ethercat protocols)


One (eqos) can support TSN, one (fec) can support ethercat (real-time edge software)


Speed: 10/100/1000 Mbps


PHY: Realtek RTL8211FD(I)-CG

USB


One USB OTG 2.0 Connector (Mini Type B)


Two USB 3.1 Host Ports (Type A)


One USB 2.0 signals on mPCIe


One USB 3.1 signals on mPCIe


One USB 2.0 host signal set on the M.2 2230 Key E connector


One USB 3.1 host signals and three USB 2.0 host signals on EIO 50-pin 2.0mm expansion box header

Camera Interface


1 x 2-lane and 1 x 4-lane MIPI-CSI


2 x 0.5mm 24P FPC(V) Connector on the rear side

SD interface


one 4-bit microSD connector

nanoSIM card socket



1 x Nano SIM Card Socket

SPI

Two SPI interfaces with two chip selects per SPI channel.

Audio

6-pin 1.25mm header


Audio Codec: WM8960


Headphone Out


Microphone In


6-pin box heade

LED


1 x green power indication LED


1 x yellow programmable LED

M.2 Type 2230 Key E Connector

One M.2 Type 2230 Key E Connector


Support 1 x 4-bit SDIO


Support 1 x USB 2.0 signals


Support 1 x 4-wire UARTs


Support 1 x I2C signals


Support 1 x PCIe 1-lane signals


Support 1 x I2S signals


Support 88W8997 chipset WiFi/Bluetooth M.2 cards (like Azureware AW-CM276MA-PUR)

mPCIe Connector

One mPCIe Connector


Support 1 x USB 3.1 signals


Support 1 x USB 2.0 signals


Designed for 4G/5G LTE module

UART

Six UARTS


1 x 2-wire on debug header


1 x 4-wire on M.2 Connector


1 × 4‑wire and 3 × 2‑wire interfaces on the EIO 50‑pin 2.0 mm expansion box header

RTC


Backup Battery by 2-pin type connector


External Seiko S-35390A RTC controller

Reset


1 Reset Button

Rear I/O Expansion Header

EIO50 50-pin 2.00mm Box Header that includes


1 x USB 3.1 Host


2 x USB 2.0 Host


2 x CAN-FD (TTL)


1 x SPI


2 x I2C


4 x UARTs (1 x 4-wire and 3 x 2-wire)


6 x GPIOs

General Purpose I/O

6 x GPIOs on EIO 50-pin box header

Boot Source Select

Select options include to boot from one of the following:


eMMC Flash (Default)


microSD Card (Recovery)

Power Supply

12V input


Power Supply Voltage: 12V DC-IN by lockable DC Jack (or 2-pin type connector by BOM option)


AT mode


Power Consumption: 7.21 W

Expansion


1 x M.2 2230 Key E Slot (USB .0/I2C/UART/PCIe/UART/SDIO/I2S)


1 x mPCIe (USB 2.0 and USB 3.1)


EIO50 50-pin 2.00mm Box Header (4 x UARTs, 1 x USB 3.1, 2 x USB 2.0, 2 x I2C, 1 x SPI, 6 GPIOs, 2 x CAN-FD)


SD Socket: 1 x Micro SD Socket

Temperature

Industrial Temperature Range

-40 degree C ~ 85 degree C

Commercial Temperature Range

0 degree C ~ 60 degree C

Storage Temperature Range

-40 degree C ~ 150 degree C

Junction Temperature Range

-40 degree C ~ 150 degree C

Form Factor

pITX


Dimensions: 100 x 72 x 18 mm


Weight: 0.2kg

Certifications

CE/FCC class B


hardware document Design Resources



hardware document Software Guides

Yocto

Developer's Guide

Comprehensive Yocto developer guide for building, customizing embedded Linux systems

Debian

Developer's Guide

Comprehensive Debian developer guide for building, customizing embedded Linux systems

Ubuntu

Developer's Guide

Comprehensive Ubuntu developer guide for building, customizing embedded Linux systems

Real-Time Edge

Developer's Guide

Real-Time Edge Software enables deterministic Linux, industrial networking, low latency applications.

Android

Developer's Guide

Comprehensive Android developer guide for building, customizing embedded Linux systems

hardware document Ordering Information

Part Number

Notes

1


2G: 2GB LPDDR4


4G: 4GB LPDDR4


6G: 6GB LPDDR4 (Only for projects with sufficient volume)

2. W: WiFi (IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R) and Bluetooth 5.3; Leave it blank if not needed.

3. I: Industrial Temperature (-40 degree C ~ 85 degree C); Leave it blank if commercial temperature.

Examples


Part Number: pITX-MX8M-PLUS-2G-I

Description: i.MX8M Plus pITX SBC with 2GB LPDDR4 and Industrial Temperature (-40 degree C ~ 85 degree C)


Part Number: pITX-MX8M-PLUS-4G-W

Description: i.MX8M Plus pITX SBC with 4GB LPDDR4, WiFi/BT on module (on M.2) and commercial temperature.)

Optional Accessories

P/N: pITX-IOB-2201

50-P I/O Expansion Board:

Features


1 x USB 3.0+2.0 dual-stack Type A connector


1 x USB 2.0 Type A Connector


1 x SPI Header


3 x RS232, 1 x RS485


2 x CAN-FD (w/ transceiver)


6 x GPIO (-24V-24V)


2 x 2-pin I2C 2.0mm Header


Capacitity Touch RST and INT Header


Dimension: 146mm x 31mm

P/N: 12605M200ABG-00

M.2 802.11a/b/g/n/ac WiFi/BT Module


Description: Wi-Fi 6, IEEE 802.15.4, and Dual-Mode Bluetooth M.2 modules

P/N: 126010101245-00

Dipole Antenna


Description: Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M BLK

P/N: 12506100003HF4-00

Antenna Cable


Description: M.2 Wifi module I-PEX MHF4 connector to Antenna Cable, 100mm.

P/N: VTT-HS-9A981-A1

Heat Sink


Description: Heak sink for pITX-MX8M-PLUS SBC

P/N: 125021500AUD-00

Audio Cable


Description: 6-pin 1.25mm Audio Connector to Audio Jack (HP Out, Mic In and Line In) Cable

P/N: 125040700LCD-00

7-inch LVDS display


Description: 7-inch LVDS Display G070VW01 V0

P/N: 125022000BKT-00

7-inch LVDS backlight cable


Description: BKLT0 or BKLT1 Connector to 7-inch LVDS Display G070VW01 V0 backlight connector cable, 200mm

Packing List


1 x pITX-MX8M-PLUS SBC


1 x RTC backup battery
