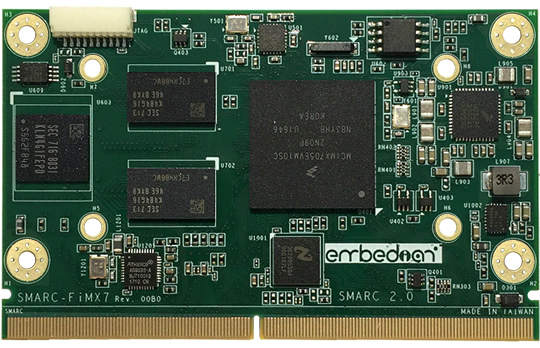

SMARC-FiMX7

Highlight

  • NXP i.MX7 Cortex-A7 Solo 800Mhz and Dual Core 1GHz
  • 1GB (Dual) or 512MB (Solo) DDR3L, 8GB eMMC Flash, 1x SDIO
  • 24-bit dual-channeled LVDS up to 1080p
  • 2 x GBE LAN w/AVB
  • 2 x CAN, 4 x UART, 5 x I2C, 1 x I2S, 1 x PCIe (Dual only), 12 x GPIOs, 2 x SPI, 2-LANE Serial Camera Interface

Possible Applications

  • Building Automation
  • Enterprise Scanners and Printers
  • Smart Grid and Smart Metering
  • HMI Control / Security
  • IOT solutions
  • Smart Home Controls
  • Healthcare/Patient Monitoring
  • General Control Systems
  • Automotive Communication Systems
  • Access Control Panels
  • HVAC Control System

SMARC LOGOFreescale LOGOYocto Project LOGO
Add to Cart:
Max: 50
Price by Quantities/Lot
1-9
$140.00 		10-50
$130.00

* On-line purchase offers convenience at sample development stage. For a larger number of orders, please click "Request for Quotation" at left-hand side of this page. We will offer much better discount price.

Please Choose:

SMARC-FiMX7-S




SMARC-FiMX7-D




The default pricing is based on i.MX7 Dual Core running at 1GHz.

The SMARC-FiMX7 is a versatile small form factor Computer-On-Module with Qualcomm/NXP i.MX7 processor and offers scalability with single and dual core processors. The dual core ARM Cortex-A7 runs a peak frequency of 1GHz, while the single core ARM Cortex-M4 has a peak frequency of 200MHz. The single core Cortex-A7 has a peak frequency of 800MHz, while the single core Cortex-M4 runs at 200MHz. Both the SoCs support asymmetric or heterogeneous multi-core processing, in which the real time applications can run on the Cortex-M4, while the user applications are taken care by Cortex-A7. SMARC-FiMX7 is also the first SMARC 2.0 specification compliant module from Embedian.
SMARC-FiMX7 supports SMARC 2.0 standards.

Technical Information
Part Number
SMARC-FiMX7 part number
  • 1: S (Solo Core running up to 800Mhz and 512MB DDR3L memory)
         D (Dual Core running up to 1GHz and 1GB DDR3L memory)
Note: SMARC-FiMX7 supports 1.8V (SMARC 2.0) VDDIO.
Example: SMARC-FiMX7-D: Dual Core SMARC-FiMX7 module with 1GB DDR3L.
Compliance
SMARC 2.0 Compliant
Dimension (W x L)
82mm x 50mm
CPU
NXP (Freescale) i.MX 7
Solo or Dual Core
1GHz (Dual Core) or 800Mhz (Solo Core)
Main Memory
1GB DDRL (Dual Core)
512MB DDR3 (Solo Core)
8GB eMMC (5.x) onboard
4MB SPI NOR Flash onboard
AT24C32 EEPROM onboard
Graphic Controller
ePxP (Enhanced PiXel Processing engine to offloading key pixel processing)
Up to 1080p full HD resolutions
Display Interfaces
Single channel 24 bit LVDS LCD or dual channel 24-bit LVDS LCD
  • Panel support signals (I2C, Power Enables, PWM)
  • 2nd LVDS channel is defined on SMARC 2.0 interface
MIPI/Serial Camera Interfaces
Serial configuration: CSI (2-lanes)
SDIO Interfaces
One SDIO interfaces
  • 4 bit SDIO card interface with support lines
  • 8 bit eMMC interface with support lines
SPI Interfaces
Two SPI interfaces with 2 chip selects on each SPI channel
I2S Interfaces
One I2S interface
  • Typically used for connection to I2S audio CODECs
I2C Interfaces
Four I2C interfaces
  • Power Management
  • General Purpose
  • Camera
  • LCD Display ID
Asynchronous Serial Port (UART) Interfaces
Four asynchronous serial ports
Two with 4 wire handshake (RXD, TXD, RTS#, CTS#)
Two with data only (RXD, TXD)
Logic level signals
CAN Bus Interfaces
Two CAN bus interfaces
  • Logic level signals from Module based CAN bus protocol controllers
  • RXD, TXD only
  • Two Module GPIOs are designated for optional use as CAN bus error status inputs
USB Interfaces
Two USB OTG 2.0 Ports with PHY (Only one port with PHY for Solo Core)
USB support signals (VBUS enable / Over-current detects, OTG support signals)
PCI Express (Dual Core only)
One PCIe x 1 link
PCIe Gen2.1
Reference Clock Pair
Could be configured as PCIe target
Common PCIe wake signal
Gigabit Ethernet (with AVB)
Two analog GBE MDI interface for Dual Core and One analog GBE MDI interface for Solo Core (Qualcomm Atheros AR8035 PHY onboard)
No magnetics on Module
LED support signals
CTREF (center tap reference voltage) for Carrier magnetic
Watchdog Timer Interfaces

Real-Time Clock
External Seiko S35390A onboard
General Purpose I/O
Twelve GPIO signals
Specific alternate functions are assigned to some GPIOs
PWM / Tachometer capability
Camera support
CAN Error Signaling
HD Audio reset
System and Power Management Signals
Reset out and Reset in
Power button in
Power source status
Module power state status
System management pins
Battery and battery charger management pins
Carrier Power On control
Power Consumption (Typical)
Solo Core (512MB DDR3L): 0.9W
Dual Core (1GB DDR3L): 1.2W
Boot Source Select
Three pins to allow selection from Carrier Board
Select options to include boot from one of the following:
  • Module SPI (Default)
  • Module eMMC Flash
  • Module Remote Boot (Network Port)
  • Carrier SPI
  • Carrier SD Card

Power Supply
3V to 5.25V:
Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply

Software
Linux:
Based on NXP (Freescale) imx4.14.98_2.0.0_ga, imx_4.9.88_2.0.0_ga, imx_v4.9.11_1.0.0_ga or imx_4.1.15_2.0.0_ga
Yocto Project Support
Ubuntu 14.04 and 16.04 LTS or Debian 9 Support

Temperature
Extended Temperature
Operating Temperature Range: -20o C ~ 80o C
Storage Temperature Range: -40o C ~ 100o C
Junction Temperature Range: -40o C ~ 100o C

Form Factor
SMARC 2.0:
82 mm x 50 mm by SMARC 2.0 Specification

Evaluation Baseboard (EVK-STD-CARRIER-S20)
Features:
12V~24V Power input with 2.5mm DC Jack connector
3.5mm Audio Jack (SGTL5000 Audio Codec on Carrier)
RTC backup battery holder
Buzzer
LVDS, Display Port (DP)) and HDMI connector
2 x 10/100/1000Mbps RJ-45 connector
2 x RS232/422/485 DSUB9 connector, 2 x RS232 2.0mm Header
2 x USB host 2.0 type A connectors, 2 x USB host 3.0 type A connectors, 1 x mini USB client connector
1 x PCIex4 connector, 2 x mini PCIe connector
2 x CAN BUS header, 1 x 2x7-pin GPIO header, Audio Mic. in and Speaker out Audio Jack
2 x I2C header (for capacitive touch), 4 x SPI header, 1 Camera/MIPI header
1 x SDHC connector
A single 4KB EEPROM is provided on I2C0 that holds the board information. This information includes board name, serial number, and revision information.
1 x external watchdog reset
jumpers for LCD 3.3V or 5V voltage, boot selection, RS232 or RS485 selection
Form factor: 170mm (L) x 170mm (W) (mini-ITX form factor)
