ARM Cortex Computing Platform

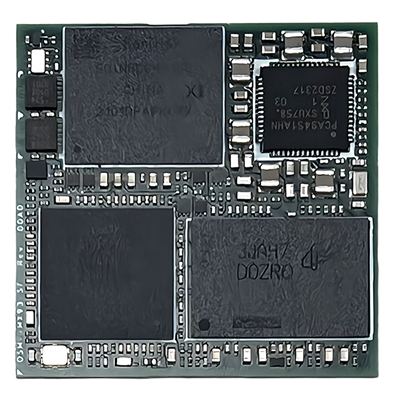

OSM-iMX93-SF

Highlight

  • NXP i.MX93 2 x ARM Cortex-A55 @1.7GHz
  • 1GB/2GB LPDDR4x, 16GB eMMC Flash
  • AI/ML Neural Processing Unit
  • MIPI DSI, 1x 2-LANE MIPI-CSI and 2 x GBEs
  • 1x USB 2.0 OTG and 1 x USB 2.0 Host, 24 x extra GPIOs
  • 2 x CAN-FD, 5 x UART, 4 x I2C, 1 x I2S, 2 x SPI, 3 x PWMs, 2 x ADCs


The OSM-iMX93-SF module is highly scalable and equipped with i.MX 93 Applications Processors manufactured by NXP. The processors integrate Arm Cortex-A55 cores running at 1.7GHz, bringing performance and energy efficiency to Linux-based edge applications and the Arm Ethos-U65 microNPU, enabling developers to create more capable, cost-effective and energy-efficient machine learning (ML) applications. The i.MX 93 processors deliver advanced security with integrated EdgeLock secure enclave and an efficient pixel pipeline to perform 2D graphics processing to realize cost-effective GUI solutions.
The OSM-iMX93-SF provides fast and low power LPDDR4x memory technology with inline ECC support, combined with 16GB eMMC Flash memory. Various interfaces for embedded applications such as Dual Gigabit Ethernet, USB 2.0, CAN-FD, MIPI DSI and MIPI CSI for connecting a camera are available. The module is compliant with the OSM 1.1 Size-S standard. For evaluation and design-in of the OSM-iMX93-SF module, Embedian provides a development platform and a starter kit. Support for Yocto Linux is available.

Technical Information
Part Number
OSM-iMX93 part number
  • 1: 1G (1GB LPDDR4x)
        2G (2GB LPDDR4x)
  • 2: I: Industrial temperature (-40oC ~ 85oC); Leave it Blank if you do not need it.
Example: OSM-iMX93-SF-1G-I stands for 1GB LPDDR4 memory in industrial (-40oC-85oC) operating temperature without WiFi/BT module.
Compliance
OSM 1.1 Size-S Compliant
Dimension (W x L)
30mm x 30mm
CPU
NXP i.MX93 2 x 1.7GHz CortexTM-A55
Real-time 250Mhz ARM CortexTM-M33
ARM EthosTM-U65 microNPU (ML) 0.5 TOPS
PXP 2D GPU
Main Memory
16-bit 1GB/2GB LPDDR4x up to 3200MT/s
16GB eMMC (5.x) onboard
M24C32 EEPROM onboard
Display Interfaces
MIPI DSI (up to 1920x1080p60)
MIPI-CSI Camera Interfaces
1x MIPI-CSI x2
SDIO Interfaces
Two SDIO interfaces
  • 4 bit SDIO card interface with support lines
SPI Interfaces
Two SPI interfaces with 2 chip selects on each SPI channel
I2S Interfaces
One I2S interfaces
  • Typically used for connection to I2S audio CODECs
I2C Interfaces
Four I2C interfaces
Asynchronous Serial Port (UART) Interfaces
Five asynchronous serial ports
Two with 4 wire handshake (RXD, TXD, RTS#, CTS#)
Three with data only (RXD, TXD)
Logic level signals
FlexCAN Bus Interfaces
Two CAN-FD interfaces
  • Logic level signals from Module based FlexCAN bus protocol controllers
  • RXD, TXD only
USB Interfaces
One USB OTG 2.0 Ports with PHY
One USB 2.0 Host Ports with PHY
Gigabit Ethernet (one supports QoS with TSN)
Two analog GBE MDI interfaces
No PHY and magnetics on Module
LED support signals
Real-Time Clock
External Micro Crystal RV-8263-C8 onboard
General Purpose I/O
24 x GPIO signals
PWM
3 x PWMs
ADC
2 x ADCs
Power Consumption (Typical)
1.8W
Boot Source Select
Select options to include boot from one of the following:
  • Module eMMC Flash (Default)
  • Module eMMC Boot
  • Carrier SD Card

Power Supply
5V
Fixed 5V power supply

Software
Linux:
Based on NXP 6.1.55_2.2.0 or 6.6.3_1.0.0
Yocto Project Support

Temperature
Industrial Temperature
Operating Temperature Range: -45o C ~ 85o C
Storage Temperature Range: -40o C ~ 150o C
Junction Temperature Range: -40o C ~ 150o C

Form Factor
OSM 1.1:
30 mm x 30 mm by OSM 1.1 Specification

Evaluation Baseboard (EVK-pITX-OSM-iMX93)
Features:
+12V Power input with 2.5mm DC Jack connector
RTC backup battery connector
1 x HDMI connector (via MIPI-DSI)
2 x 10/100/1000Mbps RJ-45 connector
1 x M.2 Type 2230 Key E Connector (SDIO/USB2.0/4-wire UART)
2 x USB host 2.0 type A connectors, 1 x USB 2.0 OTG connector (mini Type B)
2 x SPI Header
1 x 50P 2.0mm Expansion Header (2x USB2.0/2x CAN-FD/1x SPI/2x I2C/3x UARTs/6x GPIOs)
1 x microSD connector
Form factor: 100mm (L) x 72mm (W) (pico-ITX form factor)
