EVK-EDGE-RZV2H

$199

  • OSM-RZ-V2H OSM v1.2 module bring-up platform for hardware and software development.
  • OSM-RZ-V2H OSM v1.2 module validation platform
  • Customer evaluation platform
  • Customer carrier design reference
  • Technical supports in higher priority from Embedian



or
Add to Wishlist
SKU: EVK-pITX-OSM-iMX93-1-1 Category: Tag:

Share:

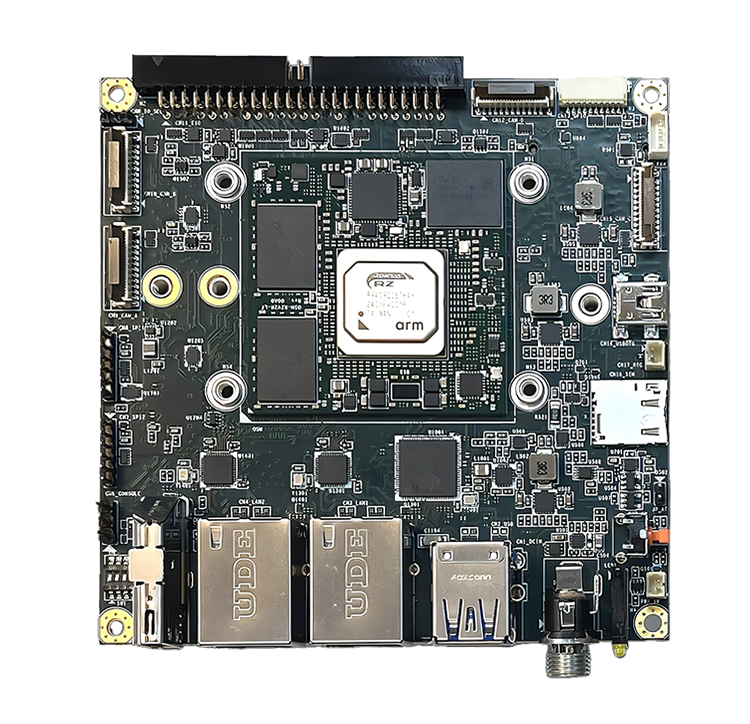

EVK-EDGE-RZV2H Evaluation Kit

  • Flexible prototyping vehicle
  • An "application ready" single board computer. (together with OSM module)
  • Dimensions: 100mm x 100mm (W x L)
  • Availability guaranteed until 2038

Feature Highlights

  • Fixed DC 12 Power input with 2.5mm (lockable) DC Jack

  • HDMI (1080p60, via MIPI-DSI interface) connector

  • RTC backup battery 2-pin connector

  • 2 x 10/100/1000Mbps RJ-45 connectors

  • 2 x USB 3.2 host type A connectors, 1 x mini type-B USB client connector

  • 1 x microSD connector

  • 1 x nanoSIM card socket

  • 4 x 4-LANE MIPI-CSI CAMERA interfaces for camera modules

  • 2 x 6P SPI Header

  • 1 x reset button

  • 1 x external watchdog reset

  • 1 x M.2 Type 2230 Key E Connector (PCIe 2.0/USB 2.0/4-wire UARTs)

  • 1 x M.2 Type 3052 Key B Connector (USB 3.0/USB 2.0/I2S)

  • 1 x 2.0mm 50P Expansion Box Header (2 x CAN-FD/2 x UARTs/1 x USB 3.0 Host/2 x USB 2.0 Host/1 x SPI/ 2 x I2Cs/6x GPIOs)

  • 5 x GPIOs set on a 1.0mm header

  • 2 x LEDs (Power indicator and the other one is programmable)

  • Form Factor: pico-ITX (100mm x 72mm, W x L)

Document Deliverable

  • OSM-RZV2H-LF User's Manual

  • EDGE-RZV2H User's Manual

  • Carrier Board Reference Schematics (pdf and OrCAD format)

  • OSM-RZV2H-LF 3D STEP

  • OSM-RZV2H-LF  PinMux file

  • OSM-RZV2H-LF Library Symbol

  • OSM-RZV2H-LF CAD Symbol

Ordering Information

  • P/N: EVK-EDGE-RZV2H

hardware document Design Resources

[Download not found]
[Download not found]

hardware document Packing Lists

Packing Lists

  • 1 x EDGE-RZV2H SBC

  • 1 x Heat Sink

  • 1 x bootable micro-SD card with image pre-installed

  • 1 x 12V/3.5A Power Supply

  • 1 x pITX-IOB-2201 I/O expansion board
