SMARC-T4378

$120

  • TI Sitara AM4378 2/1 x Cortex-A9 @1GHz
  • 1GB/512MB DDR3L, 8GB eMMC
  • LVDS, 2x GBE
  • 2x CAN, 4x UARTs, 3x I2C, 1x I2S, 2x SPI, 2x USB2.0 OTG



or
Add to Wishlist
SKU: SMARC-T4378 Category: Tag:

Share:

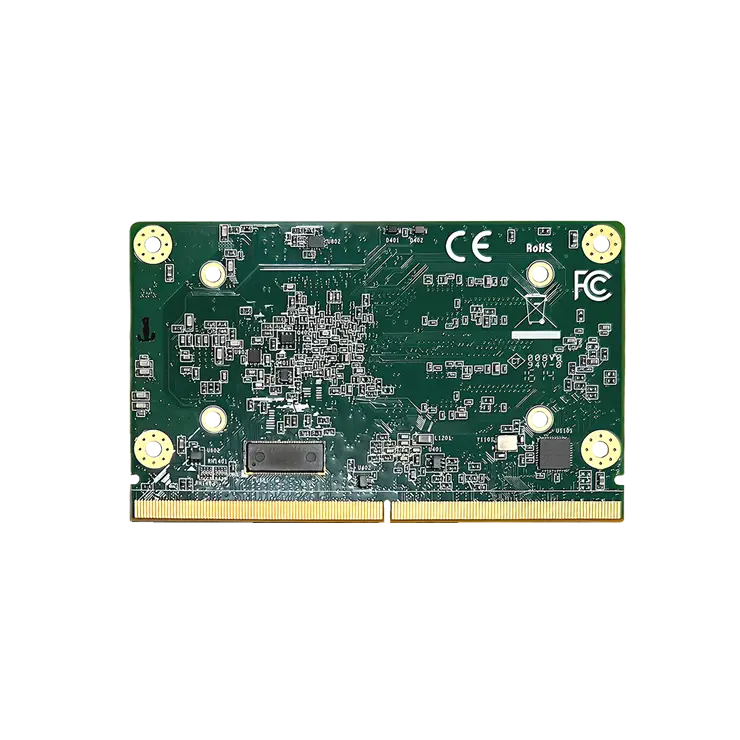

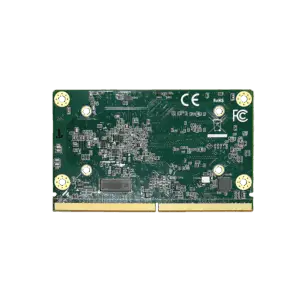

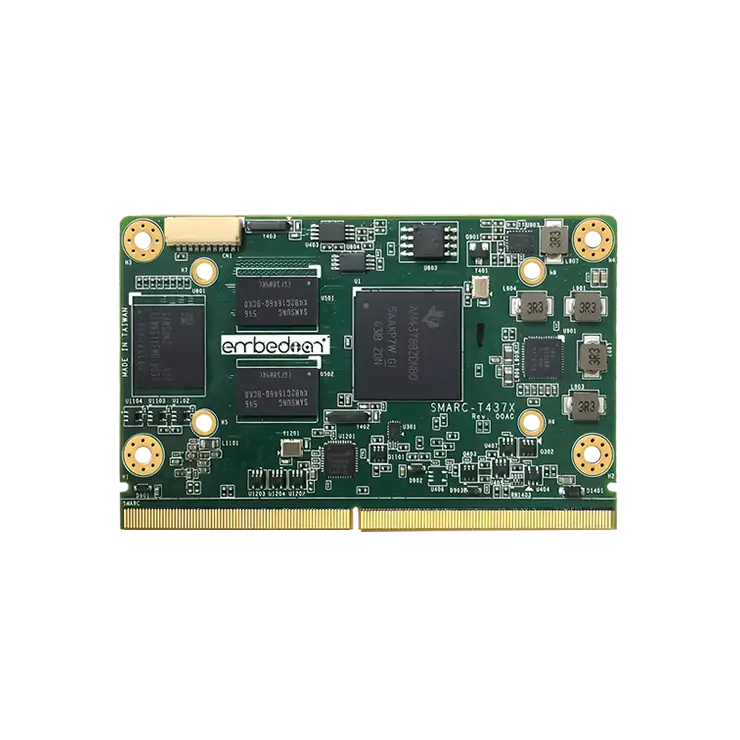

SMARC-T4378 TI Sitara AM4378 SMARC 1.1 System-on-Module

  • Single-core ARM Cortex-A9, 1.0GHz or 800MHz
  • SMARC 1.1 (S158 grounded) and 1.0 (S158 floating) Compliance
  • WxL: 82mm x 50mm
  • Availability guaranteed until 2035

Feature Highlights

  • 1GB/512MB DDR3L and 8GB eMMC

  • 24-bit parallel RGB LCD (1080p)

  • SGX530 2D/3D GPU

  • 2 x GbEs, 2 x USB 2.0 OTG, 2 x CAN, 4 x UARTs, 3 x I2C, 1 x I2S, 2 x SPI, 1 x SDIO, 12 x GPIOs

  • Industrial temperature range of -40 degree C to 85 degree C

Yocto Project, Linux and RTOS

  • Full Board Support Package and ready-to-run images

  • Yocto Project BSP

  • Continuous BSP updates and maintenance

Speed Up your Product Design

  • Full carrier-board design package - schematics, BOM, PCB layout and 3D step files

  • Direct technical support by Embedian design engineers

  • Free design review by Embedian engineers

  • Carrier board debug by Embedian design engineers

  • Driver adaptation service for custom LCD panels

hardware document Specifications

Specifications

Technical Information

Compliance

SMARC 1.1 (S158 grounded) and 1.0 (S158 floating) Compliant

Dimension (W x L)

82mm x 50mm

CPU

  • TI Sitara AM4378 Cortex-A9 @1.0GHz or@800MHz

GPU

  • SGX530 2D and 3D

  • Up to 1080p60 resolutions

Main Memory

  • 1GB (1GHz processor) or 512MB (800Mhz processor) DDR3L

  • 8GB eMMC (5.x) onboard

  • 4MB SPI NOR Flash

  • AT24C32 EEPROM onboard

Display

  • 24 bit parallel RGB display (up to 1920x1080@60Hz)

SDIO

One SDIO interface

  • 1 x 4-bit SDIO card interface with support lines

SPI

Two SPI interfaces with two chip selects per SPI channel.

I2S

One I2S interfaces

  • Typically used for connection to I2S audio CODECs

I2C

Three I2C interfaces

  • Power Management

  • General Purpose

  • LCD Display ID

UART


  • Four asynchronous serial ports

  • Two ports supporting four-wire handshaking (RXD, TXD, RTS#, CTS#).

  • Two ports supporting data-only signals (RXD, TXD).

CAN Bus

Two CAN 2.0b interfaces

  • Logic level signals from Module based CAN bus protocol controllers

  • RXD and TXD only

USB

  • Two USB OTG 2.0 Ports with PHY

Gigabit Ethernet

  • Two GbE MDI interfaces

  • Qualcomm AR8035 PHY on module

  • No magnetics on Module

  • LED support signals

Real-Time Clock (RTC)

External Seiko S35390A controller on module

General Purpose I/O

12 x GPIO Signals, specific alternate functions are assigned to some GPIOs

  • PWM / Tachometer capability

  • Camera support

  • CAN Error Signaling

  • HD Audio reset

System and Power Management Signals

  • Reset Out and Reset In

  • Power Button Input

  • Power Source Sataus

  • Module Power State Status

  • System Management Pins

  • Battery and Battery

  • Charger Management Pins

  • Carrier Power On Control Pins

Power Consumption

  • 2.1W (Typical)

Boot Source Select

Three pins to allow selection from carrier board. Select options include to boot from one of the following:

  • Module NOR Flash (Default)

  • Module eMMC Flash

  • Network Boot

  • Carrier SD Card (Recovery)

Power Supply

3V to 5.25V

Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply

  • 1.8V (S158 grounded) or 3.3V (S158 floating) VDDIO

Temperature

Industrial Temperature Range

-40 degree C ~ 85 degree C

Commercial Temperature Range

0 degree C ~ 60 degree C

Storage Temperature Range

-40 degree C ~ 150 degree C

Junction Temperature Range

-40 degree C ~ 150 degree C

Form Factor

SMARC 1.1 or 1.0

82 mm x 50 mm by SMARC 1.1 and 1.0 Specification

hardware document Design Resources

[Download not found]
[Download not found]


hardware document Software Guides

Yocto

Developer's Guide

Comprehensive Yocto developer guide for building, customizing embedded Linux systems

  • Morty (Processor-SDK-04.01.00.06)

    Yocto Morty (Kernel 4.9.41)

  • All Release

    All SMARC-T4378 Yocto Release

SMARC-T4378 NXP SMARC 2.0/1.1 System-on-Module

  • SMARC v2.0+ module compliance
  • SMARC v2.0+ module bring-up platform for hardware and software development
  • SMARC 2.0+ module evaluation and validation platform
  • Customer carrier board design reference
  • Priority technical support from Embedian

Ordering Info.


Part Number: EVK-STD-CARRIER-S20

Packing Lists

  • 1 x EVK-STD-CARRIER-S20 carrier board

  • 4 x M2.5 screws

  • 1 x  bootable SDHC card with image pre-installed (only when purchase together with Embedian SMARC modules)

  • 1 x LVDS cable

  • 1 x LVDS LCD Backlight cable

  • 1 x 12V/3.5A Power Supply

  • 1 x SATA Power cable

  • 1 x 10-way box header to DB9 cable (for console or RS232)

  • SMARC module not included)

Evaluation Bseboard Features

  • DC +12V ~ +24V Power input with 2.5mm DC Jack

  • Accept 1.8V VDDIO SMARC 2.0+ compliant module

  • Supports all SMARC 2.0+ I/O interfaces

  • Form factor: 170mm (L) x 170mm (W) (mini-ITX form factor)

hardware document Ordering Information

Part Number

Notes

1.

  • 800: CPU running at 800MHz and using 512MB DDR3L

  • 01G: CPU running at 1GHz and using 1GB DDR3L

2.

  • I: Industrial Temperature (-40 degree C ~ 85 degree C); Only industrial temperature option for this part.

3.

  • C: Conforrmal Coating (Only support it for industrial temperature variants and at the mass production stage); Leave it blank if not needed.

Example

  • Part Number: SMARC-T4378-01G-I

Description: Sitara AM4378 processor running at 800Mhz and uses 512MB DDR3L, Industrial Temperature (-40 degree C ~ 85 degree C)

  • Part Number: SMARC-FiMX6-U-1G

Description: Sitara AM4378 processor running at 800Mhz and uses 512MB DDR3L in commercial temperature
