SMARC-T3354

$120

  • TI Sitara AM3354 Cortex-A8 @600MHz/800MHz/1GHz
  • 512MB DDR3L, 8GB eMMC
  • LVDS, 2x 10/100Mbps Ethernet
  • 1x CAN, 3x UARTs, 3x I2C, 1x I2S, 2x SPI, 1x USB2.0 OTG and 1x USB 2.0 Host
or
Add to Wishlist
SKU: SMARC-T3354-600 Category: Tag:

Share:

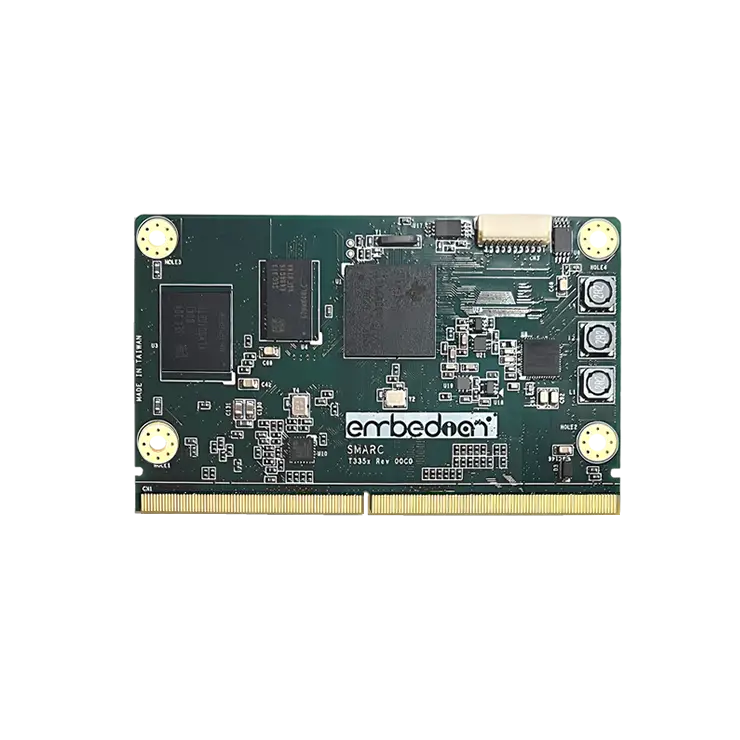

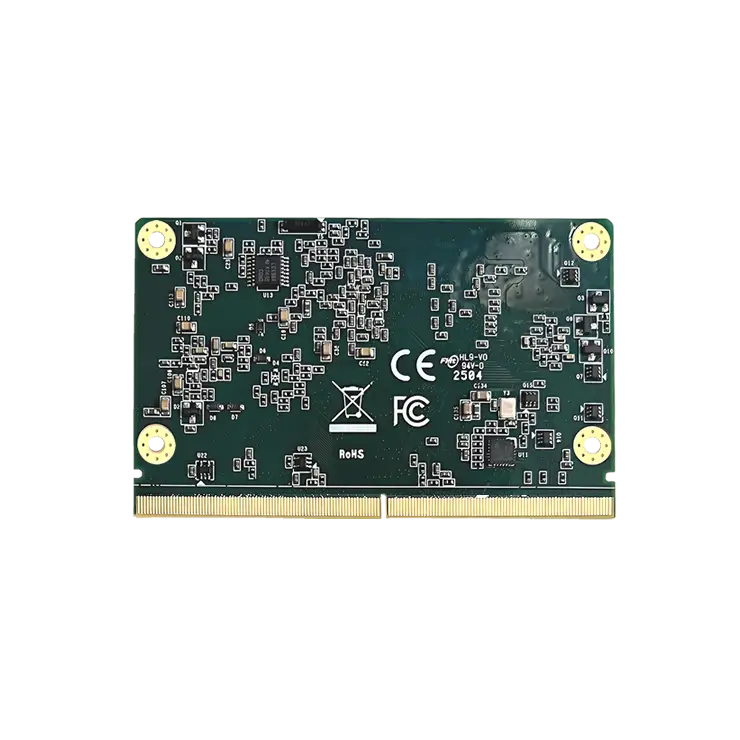

SMARC-T3354 TI Sitara AM3354 SMARC 1.1 System-on-Module

  • ARM Cortex-A8, 1.0GHz/800MHz/600MHz
  • SMARC 1.0 (82mm x 50mm) Compliance
  • Availability guaranteed until 2035

Feature Highlights

  • 512MB DDR3L and 8GB eMMC

  • 24-bit parallel RGB LCD (1366x768p60)

  • SGX530 2D/3D GPU

  • 2 x 10/100Mbps Ethernets, 1 x USB 2.0 OTG, 1 x USB 2.0 Host, 1 x CAN, 3 x UARTs, 3 x I2C, 1 x I2S, 2 x SPI, 1 x SDIO, 12 x GPIOs

  • Industrial temperature range of -40 degree C to 85 degree C

Yocto Project, Linux and RTOS

  • Full Board Support Package and ready-to-run images

  • Yocto Project BSP

  • Continuous BSP updates and maintenance

Speed Up your Product Design

  • Full carrier-board design package - schematics, BOM, PCB layout and 3D step files

  • Direct technical support by Embedian design engineers

  • Free design review by Embedian engineers

  • Carrier board debug by Embedian design engineers

  • Driver adaptation service for custom LCD panels

hardware document Specifications

Specifications

Technical Information

Compliance

SMARC 1.0 Compliant

Dimension (W x L)

82mm x 50mm

CPU

  • TI Sitara AM3354 Cortex-A8 @1.0GHz/800MHz/600MHz)

GPU

  • SGX530 2D and 3D

  • Up to 1366x768p60 resolutions

Main Memory

  •  512MB DDR3L

  • 8GB eMMC (5.x) onboard

  • AT24C32 EEPROM onboard

Display

  • 24 bit parallel RGB display (up to 1366x768@60Hz)

SDIO

One SDIO interface

  • 1 x 4-bit SDIO card interface with support lines

SPI

Two SPI interfaces with two chip selects per SPI channel.

I2S

One I2S interfaces

  • Typically used for connection to I2S audio CODECs

I2C

Three I2C interfaces

  • Power Management

  • General Purpose

  • LCD Display ID

UART

  • Three asynchronous serial ports

  • One ports supporting four-wire handshaking (RXD, TXD, RTS#, CTS#).

  • Two ports supporting data-only signals (RXD, TXD).

CAN Bus

Two CAN 2.0b interfaces

  • Logic level signals from Module based CAN bus protocol controllers

  • RXD and TXD only

USB

  • One USB OTG 2.0 Ports with PHY

  • One USB 2.0 Host Port with PHY

10/100Mbps Ethernet

  • Two 10/100Mbps MDI interface

  • Microchip LAN8720A PHY on module

  • No magnetics on Module

  • LED support signals

Real-Time Clock (RTC)

External Seiko S35390A controller on module

General Purpose I/O

12 x GPIO Signals, specific alternate functions are assigned to some GPIOs

  • PWM / Tachometer capability

  • Camera support

  • CAN Error Signaling

  • HD Audio reset

System and Power Management Signals

  • Reset Out and Reset In

  • Power Button Input

  • Power Source Sataus

  • Module Power State Status

  • System Management Pins

  • Battery and Battery

  • Charger Management Pins

  • Carrier Power On Control Pins

Power Consumption

  • 2.0W (Typical)

Boot Source Select

Three pins to allow selection from carrier board. Select options include to boot from one of the following:

  • Module eMMC Flash (Default)

  • Network Boot

  • Carrier SD Card (Recovery)

Power Supply

3V to 5.25V

Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply

  •  3.3V VDDIO

Temperature

Industrial Temperature Range

-40 degree C ~ 85 degree C

Commercial Temperature Range

0 degree C ~ 60 degree C

Storage Temperature Range

-40 degree C ~ 150 degree C

Junction Temperature Range

-40 degree C ~ 150 degree C

Form Factor

SMARC 1.0

82 mm x 50 mm by SMARC 1.0 Specification

hardware document Design Resources

[Download not found]
[Download not found]


hardware document Software Guides

Yocto

Developer's Guide

Comprehensive Yocto developer guide for building, customizing embedded Linux systems

  • Morty (Processor-SDK-04.01.00.06)

    Yocto Morty (Kernel 4.9.41)

  • All Release

    All SMARC-T3354 Yocto Release

SMARC-T4378 NXP SMARC 2.0/1.1 System-on-Module

  • SMARC v1.0 module compliance
  • SMARC v1.0 module bring-up platform for hardware and software development
  • SMARC 1.0 module evaluation and validation platform
  • Customer carrier board design reference
  • Priority technical support from Embedian

Ordering Info.

  • Part Number: EVK-SMART-BEE

Packing Lists

  • 1 x EVK-SMART-BEE carrier board

  • 4 x M2.5 screws

  • 1 x bootable SDHC card with image pre-installed (only when purchase together with Embedian SMARC modules)

  • 1 x LVDS LCD cable

  • 1 x RJ45-DB9 console debug cable

  • 1 x 5V/3A Power Supply

  • 1 x 10-way box header to DB9 cable (for console or RS232)

  • SMARC module not included

Evaluation Bseboard Features

  • DC +5V Power input with 2-way 5.00mm terminal block

  • Accept 3.3V VDDIO SMARC 1.0 compliant module

  • Supports all SMARC 1.0 I/O interfaces

  • Form factor: 102mm (L) x 145mm (W) (3.5-inch form factor)

hardware document Ordering Information

Part Number

Notes

1.

  • 600: CPU running at 600MHz (commercial temp. only)

  • 800: CPU running at 800Mhz (industrial temp. only)

  • 01G: CPU running at 1GHz (commercial temp. only)

2.

  • I: Industrial Temperature (-40 degree C ~ 85 degree C); Only industrial temperature option for this part.

3.

  • C: Conforrmal Coating (Only support it for industrial temperature variants and at the mass production stage); Leave it blank if not needed.

Example

  • Part Number: SMARC-T3354-600

Description: Sitara AM3354 processor running at 600Mhz and uses 512MB DDR3L, commercial temperature (0 degree C ~ 60 degree C)

  • Part Number: SMARC-T3354-800-I

Description: Sitara AM3354 processor running at 800Mhz and uses 512MB DDR3L, industrial temperature (-40 degree C ~ 85 degree C)
